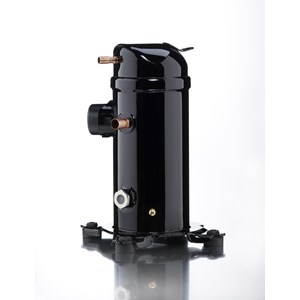

Máy nén cuộn MLZ019T5LP9A 120U8729
Chất làm lạnh: R404A; R407C; R507A; R452A; R134a; R513A; R22; R448A; R449A,
Phân đoạn sử dụng: MT làm lạnh,
Nguồn điện máy nén [V]: 220-240/1/50,
Product details
Gross weight 34.01 Kg
Net weight 30.95 Kg
EAN 5702428504812
Approval CE
UKCA
UL
Auxiliary winding resistance (start winding) for single-phase compressors [Ohm] 1.51
Brand technique Scroll compressor
Capacity control Fixed speed
Capacity of capacitor A 70 µF
Capacity of capacitor B 145-175 µF
Colour Black
Compressor power supply [V] 220-240/1/50
Configuration code Single
Connection type Brazed
Description MLZ019T5A
Diameter [mm] 165 mm
Discharge connection height [mm] 379 mm
Discharge connection pipe size [in] 1/2 in
Discharge connection size [in] 1/2 in
Drawing number 0XC6300B-1
Economizer No
EU RoHS compliance Yes with exemptions
EU RoHS exemption clause 6(a), 6(a)-I, 7(a), 7(c)-I, 8(b), 9(b)
Family MLZ
Fitting standard ODF
Frequency [Hz] 50
Gauge port HP None
Gauge port LP None
Glass mounting Threaded
Glass torque [Nm] 53 N-m
High value of nominal voltage at 50Hz [V] 230 V
High value of voltage range at 50Hz [V] 253 V
In scope of WEEE and contain batteries No
IP protection class IP22
Liquid injection No
Low value of nominal voltage at 50Hz [V] 230 V
Low value of voltage range at 50Hz [V] 207 V
LRA 97 A
Main winding resistance for single-phase compressors [Ohm] 0.69
Max pressure (PS) – high side 31.1 bar
Max pressure (PS) – low side 26.2 bar
MCC 23 A
Model number MLZ019T5LP9A
Motor protection Internal overload protector
Network power supply [V/Ph/Hz] 220-240/1/50 208-230/1/60
Number of starts per hour [Max] 12
Oil charge [L] 1.06 L
Oil drain 1/4” flare
Oil equalization None
Oil reference 215PZ
Oil type POE
Packing format Single pack
Packing quantity 1
Phase 1
Power connections Spade
Product group Hermetic compressors
Product Name Description Scroll compressor MLZ
Refrigerant charge [kg] [Max] 3.63 kg
Refrigerants R134a
R22
R404A
R407C
R448A
R449A
R452A
R507A
R513A
RLA 14.7 A
Rotational speed at 50Hz [rpm] 2900 rpm
Segment usage Refrigeration MT
Shipped instructions Installation instructions
Shipped mounting Mounting kit with grommets and sleeves
Shipped oil Initial oil charge
Suction connection height [mm] 250 mm
Suction connection material –
Suction connection pipe size [in] 3/4 in
Suction connection size [in] 3/4 in
Swept volume [cm3] 43.51 cm³
Technology Scroll
Total height [mm] 412 mm
Type MLZ019A
Viscosity [cP] 46 cP
Voltage of capacitor A [V] 370 V
Voltage of capacitor B [V] 330 V
Để được tư vấn hướng dẫn lựa chọn máy nén phù hợp, đem lại hiệu quả cao.
