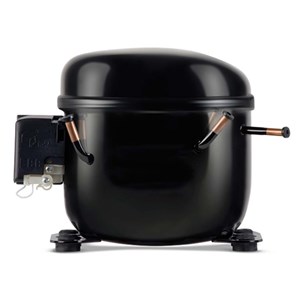

Máy nén pittông GL60AAa 123B1116
Chất làm lạnh: R134a,
Phân khúc sử dụng: Refrigeration LT,
Nguồn điện máy nén [V]: 220-240/1/50
Product details
Gross weight 8.6 Kg
Net weight 8.4 Kg
Volume 10.4 Liter
EAN 5702424676032
Applications LBP
Approval VDE
Auxiliary winding resistance (start winding) for single-phase compressors [Ohm] 24.55
Brand technique Reciprocating compressor
Capacity control Fixed speed
Colour Black
Compressor power supply [V] 220-240/1/50
Configuration code Single
Cut in current LST 50Hz [A] 9 A
Cut in current LST [A] 9 A
Description GL60AAa
Discharge connection angle [°] 0 °
Discharge connection comments Rubber plug
Discharge connection diameter [mm] 4.9 mm
Discharge connection height [mm] 98 mm
Discharge connection material Copper
Economizer No
Family L
Frequency [Hz] 50
Height from baseplate [mm] 175 mm
High value of nominal voltage at 50Hz [V] 240 V
High value of voltage range at 50Hz [V] 264 V
In scope of WEEE and contain batteries No
Low value of nominal voltage at 50Hz [V] 220 V
Low value of voltage range at 50Hz [V] 187 V
LRA LST 50Hz [A] 9 A
LRA LST [A] 9 A
Main winding resistance for single-phase compressors [Ohm] 20
MCC 1.20 A
Model number GL60AAa
Motor type RSIR
No. of phases (compressor) 1
Oil quantity [cm3] 210 cm³
Oil type POE
Packing format Single pack
Packing quantity 1
Process connection angle [°] 50 °
Process connection comments Rubber plug
Process connection diameter [mm] 6.5 mm
Process connection material Copper
Product group Hermetic compressors
Product Name Description Reciprocating compressor L
REACH Candidate List substances Lead (CAS no. 7439-92-1)
Refrigerant charge [kg] [Max] 1.15 kg
Refrigerants R134a
Rotational speed at 50Hz [rpm] 3000 rpm
SCIP dossier no. cd1d92df-acc4-43d9-8eb6-bb380e61d93f
SCIP dossier product name GL
Segment usage Refrigeration LT
Suction connection angle [°] 20 °
Suction connection diameter [mm] 6.5 mm
Suction connection height [mm] 103 mm
Suction connection material Copper
Swept volume [cm3] 5.98 cm³
Technology Reciprocating
Total height [mm] 182 mm
Type GL60
Voltage 50Hz [V] 220 V
Voltage 50Hz [V] [Max] 240 V
Winding temperature short term [°C] [Max] 135 °C
Winding temperature stat [°C] [Max] 115 °C
