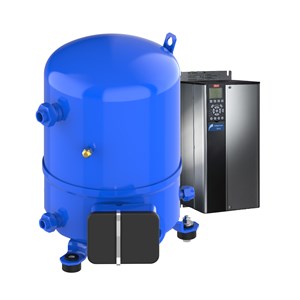

Máy nén pittông VTZ038AGNR1A 120B0001
Chất làm lạnh: R404A; R407C; R134a,
Cách sử dụng phân đoạn: MT làm lạnh,
Nguồn điện máy nén [V]: 380-480/3/50-60
Product details
Gross weight 27.88 Kg
Net weight 26 Kg
Volume 37.73 Liter
EAN 5702428666176
Brand technique Reciprocating compressor
Capacity control Inverter
Colour Blue
Compressor power supply [V] 380-480/3/50-60
Configuration code Single
Connection type Rotolock
Cylinder 1
Description VTZ038-G
Diameter [mm] 224 mm
Discharge connection height [mm] 67 mm
Discharge connection pipe size [in] 1/2 in
Discharge connection size [in] 1 in

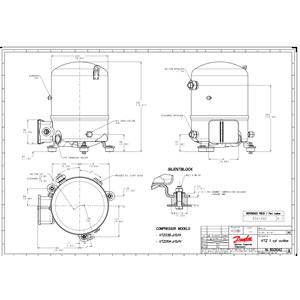

Drawing number 8501042a
Economizer No
EU RoHS compliance Yes with exemptions
EU RoHS exemption clause 6(a), 6(a)-I, 7(a), 7(c)-I, 8(b), 9(b)
Factory HP [bar] 25 bar
Factory LP [bar] 25 bar
Family VTZ
Fitting remark (shipped with rotolock version only)
Fitting sleeve ODF
Fitting standard Rotolock
Frequency [Hz] 35 – 90
Gauge port HP None
Gauge port LP Schrader
Glass mounting Threaded
Glass torque [Nm] 50 N-m
GP LP torque [Nm] 15 N-m
High Side TS Max 150 °C
High Side TS Min -35 °C
High Side Volume 0.3 L
High value of nominal voltage at 50Hz [V] 480 V
High value of nominal voltage at 60Hz [V] 480 V
High value of voltage range at 50Hz [V] 480 V
High value of voltage range at 60Hz [V] 480 V
In scope of WEEE and contain batteries No
IP protection class IP54 (with cable gland)
Low Side TS Max 50 °C
Low Side TS Min -35 °C
Low Side Volume 7.5 L
Low value of nominal voltage at 50Hz [V] 380 V
Low value of nominal voltage at 60Hz [V] 380 V
Low value of voltage range at 50Hz [V] 380 V
Low value of voltage range at 60Hz [V] 380 V
LRA 30.5 A
Max pressure (PS) – high side 29.4 bar
Max pressure (PS) – low side 22.6 bar
MMT 9.2 A
Model number VTZ038AGNR1A
Motor protection Motor protection by frequency converter
Mounting torque [Nm] 15 N-m
Network power supply [V/Ph/Hz] 380-415/3/50 460/3/60
Number of starts per hour [Max] 12
Oil charge [L] 0.95 L
Oil equalization 3/8” flare SAE
Oil equalization torque [Nm] 30 N-m
Oil reference 160PZ
Packaging height [mm] 385 mm
Packaging length [mm] 330 mm
Packaging width [mm] 295 mm
Packing format Single pack
Packing quantity 1
Phase 3
Power connections Screw 4.8 mm
Product group Hermetic compressors
Product Name Description Reciprocating compressor VTZ
REACH Candidate List substances Lead (CAS no. 7439-92-1)
Refrigerant charge [kg] [Max] 2.5 kg
Refrigerants R134a
R404A
R407C
RLA 7.35 A
SCIP dossier no. 5a332c1b-1d1b-4998-8115-d0929877ecb4
Segment usage Refrigeration MT
Shipped fittings Suction and discharge solder sleeves, rotolock nuts and gaskets
Shipped instructions Installation instructions
Shipped mounting Mounting kit with grommets, bolts, nuts, sleeves and washers
Shipped oil Initial oil charge
Suction connection height [mm] 263 mm
Suction connection material –
Suction connection pipe size [in] 5/8 in
Suction connection size [in] 1 1/4 in
Swept volume [cm3] 38.12 cm³
Technology Reciprocating
Test dif [bar] [Max] 30 bar
Test HP [bar] [Max] 30 bar
Test LP [bar] [Max] 25 bar
Torque earth [Nm] 4 N-m
Torque power [Nm] 3 N-m
Total height [mm] 356 mm
Type VTZ038
Viscosity [cP] 32 cP
Winding resistance for three-phase compressors with identical windings [Ohm] 3.37 Ohm
